Built For Every Mission
Made In The USA
Plug & Play
A modular design for quick assembly
Solderless
No special tools needed
Low Complexity
Easy to teach, easy to learn
Internal Assembly
Build or reconfigure in under 30 minutes
Built for Battle
REAVERS is built for battle in today’s combat environments, using a plug-and-play modular architecture optimized for rapid assembly and sustainment at the edge.
The aircraft incorporates rugged 3D-printed structural components that enable distributed manufacturing, fast frame replacement, and on-demand production in forward environments. An integrated interconnect board enables solderless, low-complexity internal assembly, allowing operators to build, repair, or reconfigure an aircraft in under 30 minutes with minimal tools or training.

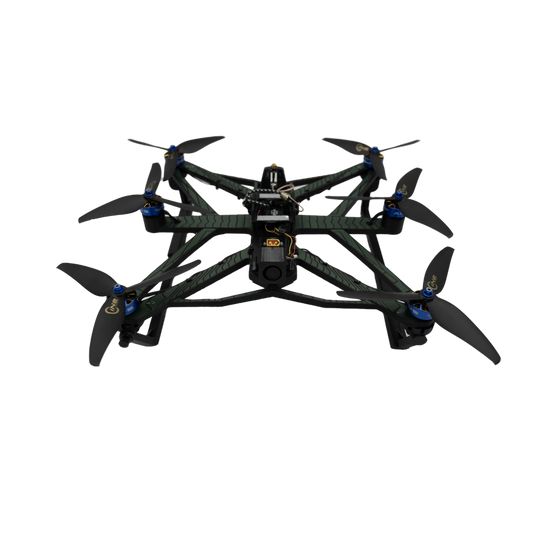

R.E.A.V.E.R.S.
Open Payload Architecture

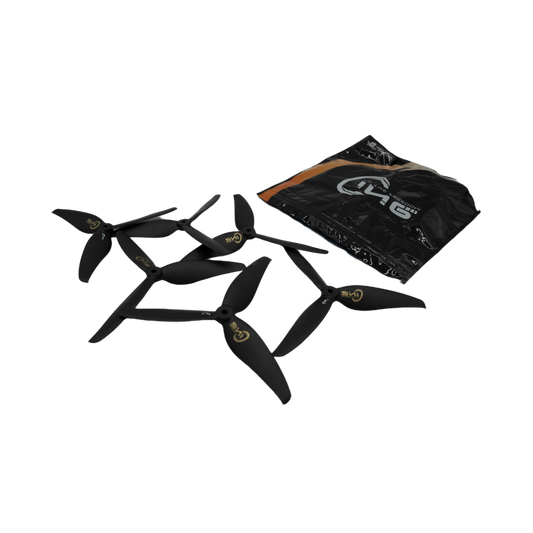

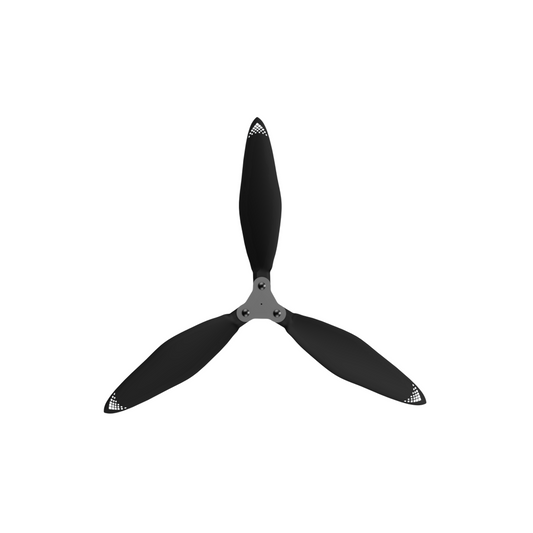

Propeller
10" Folding Propeller
Propeller Size: 10 inch
Blade Configuration: Tri Blade
Hub Interface: Universal twist and lock system
Motor Compatibility: Standard M5 shaft motors
Construction: Injection molded composite
Blade Type: Folding blades with centrifugal deployment
Motor
3115/830KV Heavy Lift Motor
KV Rating: 830 KV
Recommended Prop Size: 8–12 inch
Application: Heavy lift and cinelifter aircraft
Construction: Precision wound stator and high strength rotor
Compliance: NDAA compliant components and supply chain
Sensor

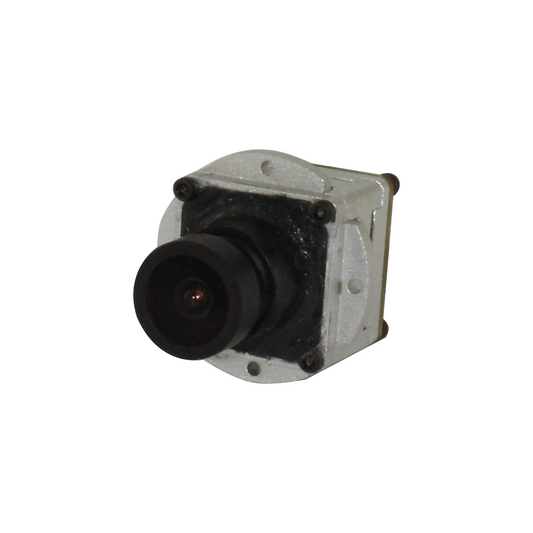

CMOS Camera
Standard Camera
Basic video output
OSD Integration Package
Integrated flight telemetry overlay through MSP or MAVLink
Advanced Software Package
OSD integration plus Pixel Lock image tracking software
(Software packages available as optional upgrades.)

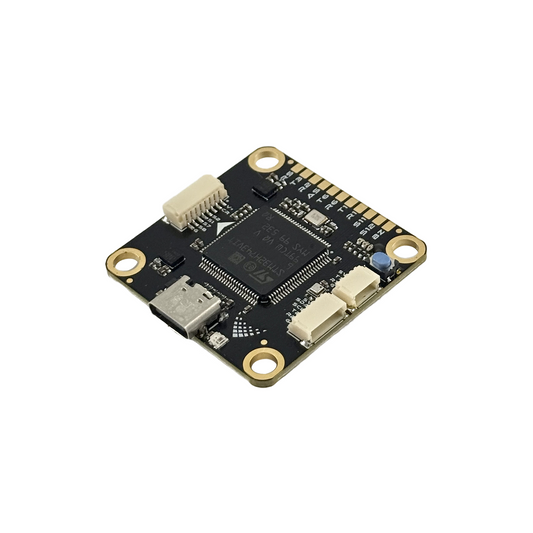

Flight Controller
H7 Flight Controller
MCU: STM32H743VIT
Gyro: BMI270
Barometer: BMP390
Blackbox Memory: 16Mb
Input Voltage: 3-8S Lipo
BEC Output: 10V/2A, 5V/3A
UARTS: 3
Dimensions: 37mm x 37mm
Mounting Holes: 30mm x 30mm
Weight: 8g

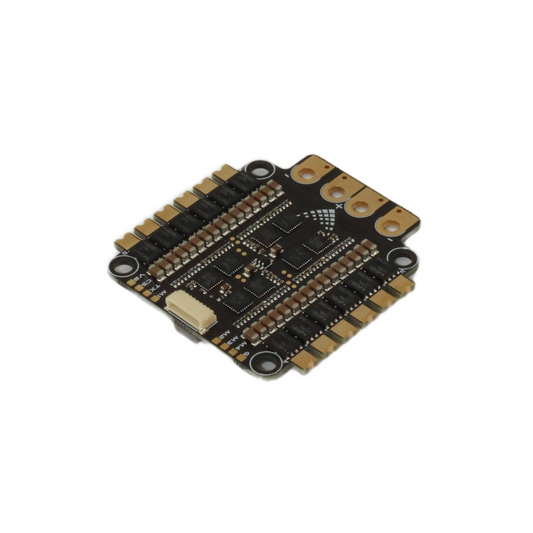

ESC
Electronic Speed Controller
Input Voltage: 6S–8S LiPo / LiIon
Firmware: AM32
Protocols: DShot compatible
Mounting Pattern: 40x40mm
Integration: ViDARR Interconnect Board compatible or JST connection for third party flight controllers
Power Connectors: Hardened XT90 input and output connectors for modular battery or payload configurations
Cooling: High efficiency thermal design
YOU DREAM IT, WE BUILD IT
SPECIFY YOUR MISSION
One-Way | Payload Delivery | ISR
SAR | Day & Night Detection | CQC

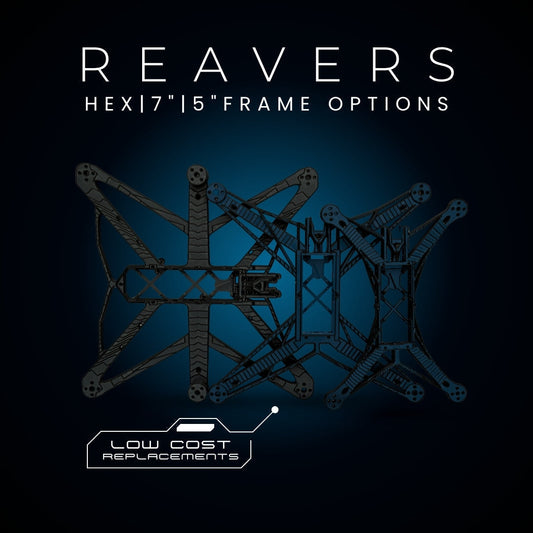

FIND THE RIGHT FRAME
REAVERS (6") | REAVERS Pro (10")
More Frames Coming Soon!
CHOOSE FLIGHT MODE
FPV | GPS Enabled | Fiber
CHOOSE YOUR ADD-ONS
Endless Modular Payload Offerings Available
How Will You Build IT?
Each component can be installed in minutes with no special tools and limited training or expertise.
REAVERS Data Sheet
REAVERS Components
