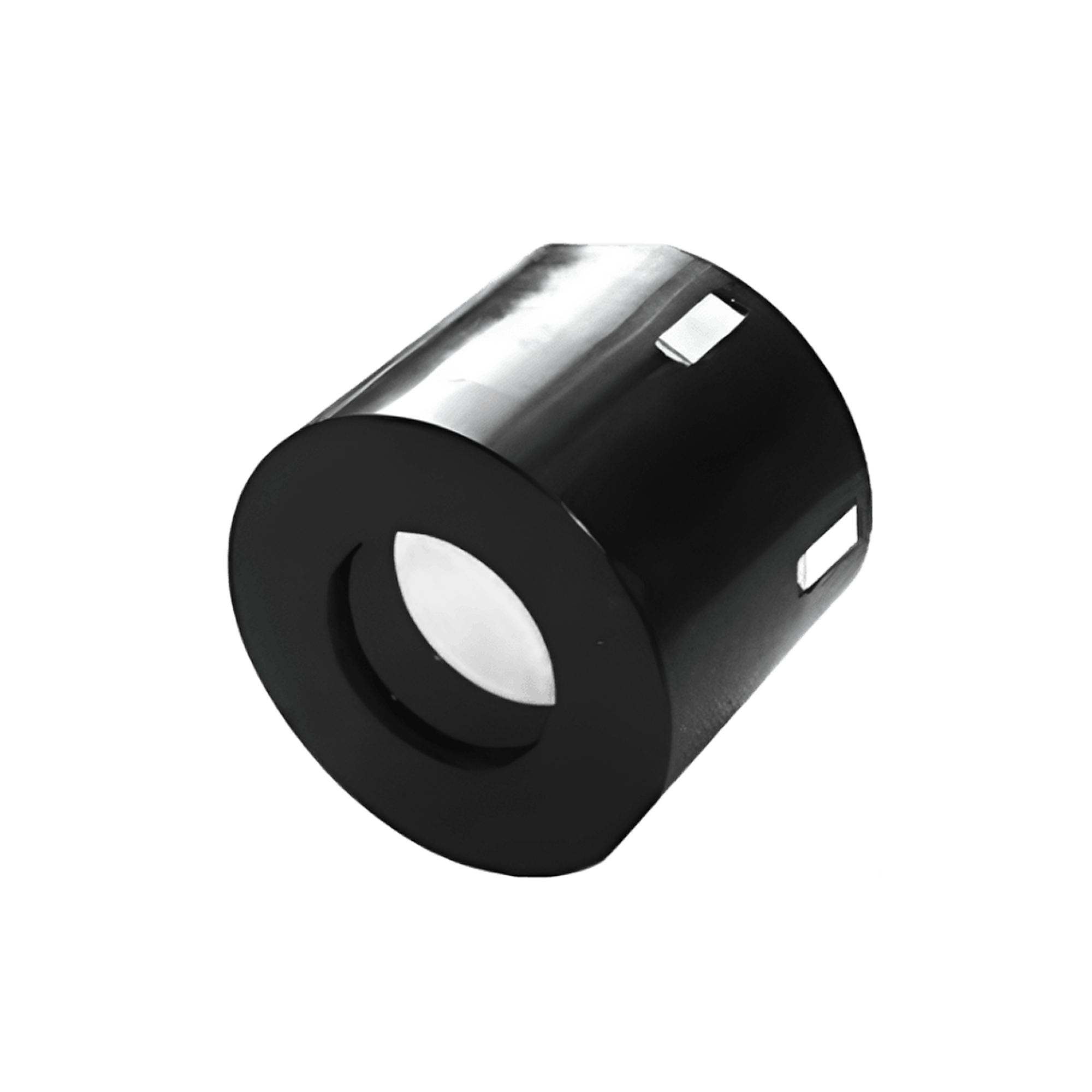

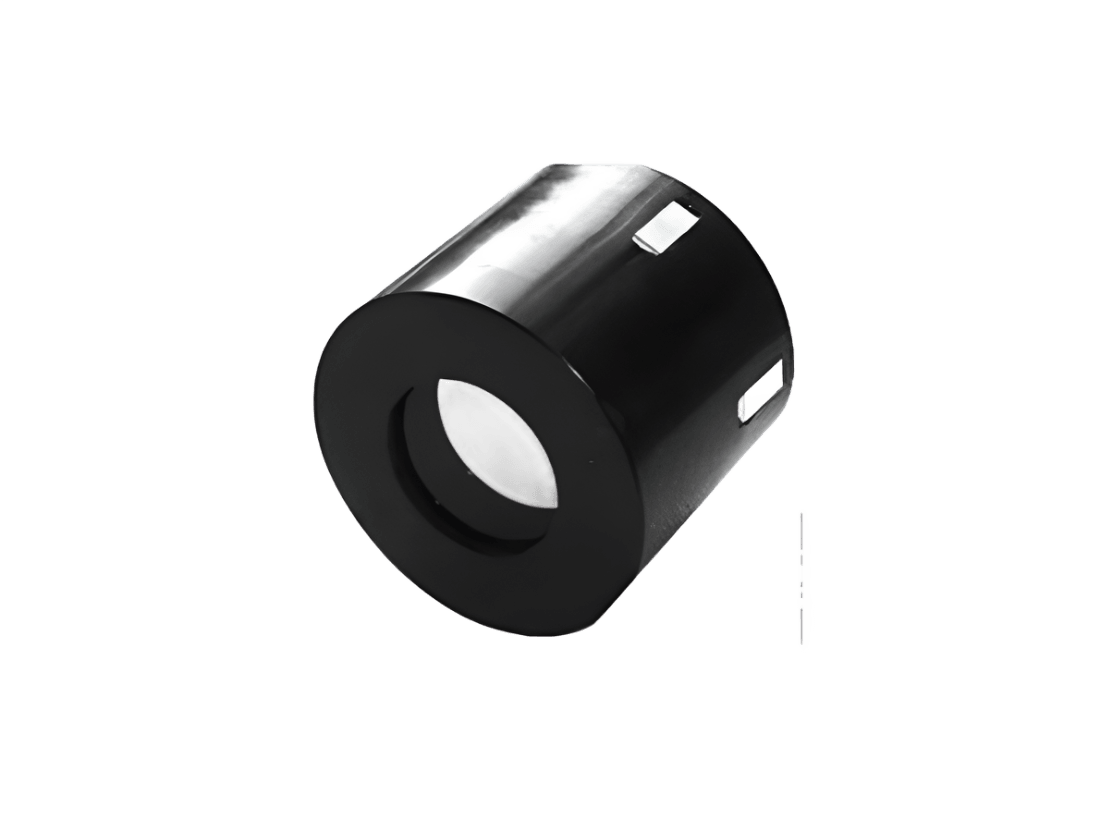

Tube Options | Image Intensifier Tube
$2,750.00 USD
Shipping calculated at checkout.
Twilight Collection
Explore our array of Gen 3 image intensifier tubes, including white phosphor and MX10130 models. Our selection caters to various needs, readily available for those wondering where to buy premier image intensifier tubes. Find your PVS 14 image intensifier tube with us.
- High-clarity Gen 3 PVS 14 MX10130 image intensifier tube
- Available white phosphor technology for sharp nocturnal vision
- Reliable performance with over 10,000-hour lifespan
- Buy image intensifier tubes here
| Specification | Twilight Standard Inverting | Twilight Optimum Inverting |
Twilight Standard Non-Inverting |
Twilight Optimum Non-Inverting |
|---|---|---|---|---|
| Limiting Resolution at Center | Min. 60 lp/mm | Min. 64 lp/mm | Min. 64 lp/mm | Min. 64 lp/mm |
| Gain at 2х10-5 lx | 30,000 cd/m²/lx | 40,000 cd/m²/lx | 45,000 cd/m²/lx | 40,500 cd/m²/lx |
| Radiant Sensitivity (850 nm) | Min. 50 mA/W | Min. 60 mA/W | Min. 50 mA/W | Min. 60 mA/W |
| Luminous Sensitivity (2850 K) | Min. 600 μA/lm | Min. 700 μA/lm | Min. 600 μA/lm | Min. 700 μA/lm |
| Signal-to-Noise Ratio | Min. 22 | Min. 25 | Min. 22 | Min. 25 |
| E.B.I. | 0.25 μlx | 0.25 μlx | 0.25 μlx | 0.25 μlx |
| Useful Cathode Diameter | 17.5 mm | 17.5 mm | 17.5 mm | 17.5 mm |
| Response Range | 450-900 nm | 450-900 nm | 450-900 nm | 450-900 nm |
| MTF 2.5 lp/mm | Min. 88% | Min. 86% | Min. 86% | Min. 86% |
| MTF 7.5 lp/mm | Min. 70% | Min. 65% | Min. 65% | Min. 65% |
| MTF 15 lp/mm | Min. 50% | Min. 42% | Min. 42% | Min. 42% |
| MTF 25 lp/mm | Min. 26% | Min. 22% | Min. 22% | Min. 22% |
| MTF 30 lp/mm | - | Min. 15% | Min. 15% | Min. 15% |
| Mass | 95 g | 72 g | 72 g | 72 g |
| Input Voltage | 2–3.6 V | 2–3.6 V | 2–3.6 V | 2–3.6 V |
| Reliability | Min. 10,000 h | Min. 10,000 h | Min. 10,000 h | Min. 10,000 h |
Frequently asked questions
Can you ship night vision internationally?
We cannot export complete night-vision systems with tubes without the proper licenses. Housings and accessories may be available internationally depending on regulations.
What warranty is included?
ViDARR Night vision housings are backed by a limited warranty against defects. Image intensifier tubes and optics carry their original manufacturer’s warranty. (Tubes typically stay under warranty for 2-3 years)
Do you provide tube spec sheets?
Yes. All new builds ship with tube data sheets. Customers can also request available tube options before assembly.
What is an image intensifier tube?
It’s the core component that amplifies ambient light into a visible image. Tube choice directly affects clarity, sensitivity, and performance.
What does FOM mean?
FOM (Figure of Merit) combines resolution and signal-to-noise ratio into one metric. It’s useful, but we recommend looking at individual specs for a complete picture.
Can I change my order after placing it?
Contact us right away. If the build hasn’t started, we’ll do our best to make adjustments.
Are labor and conversion fees included?
Yes. Professional assembly and conversion labor are part of the listed price for full systems. However, if you're interested in a conversion or custom build on a unit you already own, Contact info@vidarrinc.com for further information.
How long do conversions or custom builds take?
Most conversions are completed in about two weeks, depending on inventory and the complexity of the job.
Do you offer military, law enforcement, or EMS discounts?
Yes. Verified active duty, veterans, law enforcement, and EMS qualify. Reach out Info@vidarrinc.com to confirm eligibility and to receive a discounted price.
How should I maintain night vision gear?
Keep optics clean, store in a dry case, and avoid exposing tubes to bright light. Regular checks after heavy use help extend service life.
Where are ViDARR housings made?
X
What’s the process for returns or repairs?
Contact Info@vidarrinc.com for further assistance and information.
Can ViDARR convert my existing unit?
Yes, select conversions are available. Send us the serial and model information so we can confirm compatibility and lead time.
