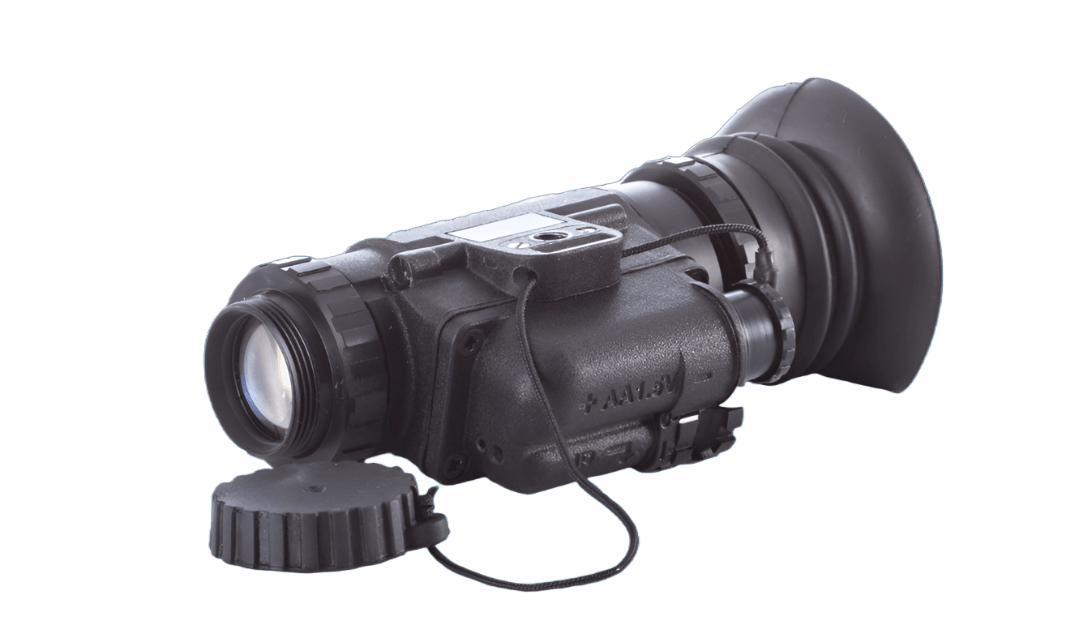

Crane Collection
Experience superior Night Vision with the Crane Collection’s powerful yet affordable night vision capabilities. Designed for handheld, rifle-mounted, or helmet-mounted use, these compact units offer robust durability, a clear 40-degree field of view, and reliable operation from -40°C to +55°C. Ideal for tactical applications, the Crane line delivers versatility and clarity exactly when and where you need it.
- Best night vision monocular for the money
- Helmet mount night vision monocular adaptable
- Night vision functionality
- Robust, compact design with 40-degree field view
- Effective temperature operation range
| Specification | Details |
|---|---|
| Dimensions | 42mm wide x 67mm high x 107mm long (with folded eye cup) |
| Weight (without battery) | 263 grams |
| Weight (with Lithium "AA" battery) | 278 grams |
| Weight (with commercial "AA" battery) | 288 grams |
| Eyeguard | Moulded rubber, fold back or optional de-mist shield |
| Magnification | 1x (with x3 and x5 options) |
| Field of View | 40 degrees |
| Focus Range | 0.25 to infinity |
| Objective Focal Length | 25mm |
| Objective F Number | F1.19 |
| Dioptre Adjustment | +5 to -6 minimum |
| Eyepiece Lens | 25mm glass aperture |
| Eye Relief | 25mm |
| Temperature Operation | -40°C to +55°C |
| Temperature Storage | -51°C to +65°C |
| Ingress Protection | IP68 Nitrogen filled |
| Power Source | Single 1.5v “AA” battery or 1.5v “AA” Lithium type (NSN 6135 01 333 6101) or 1.2v “AA” size rechargeable |
| Battery Life | In excess of 40 - 100 hours dependent on tube & battery type |
| IR on Indicator | Red LED in Eyepiece |
| Model- Crane 18 | 1800 Merit Value |
| Model- Crane 22 | 2200 Merit Value |
| Model- Crane 4G | 2000 Merit Value |
| Model- Crane 4G+ | 2200 Merit Value |
