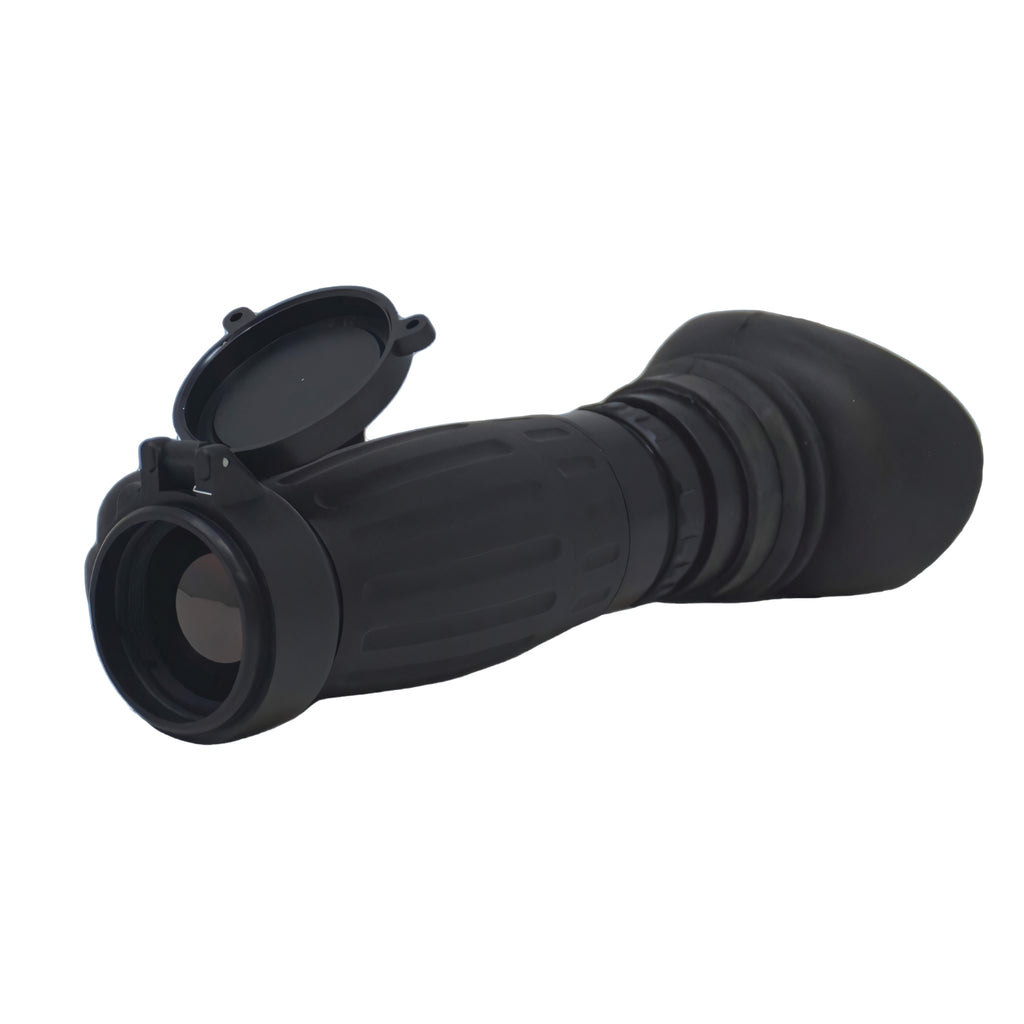

Thermal HD Hand Held Monocular | Thermal Scope
$10,059.85 USD
Shipping calculated at checkout.
Thermal HD Hand Held Monocular | Thermal Scope
Experience night clarity with our thermal vision scope. Hand-held ease, high-definition details through the thermal imaging monocular. Attachable versatility, for in-depth exploration with thermal scope attachment. Discover the unseen, any time with our thermal night vision scope.
- Advanced thermal imaging monocular
- Crisp 640 x 480 pixel HD display
- Versatile as a hand-held or thermal scope attachment
- Durable with IP68 and wide temperature range
- Real-time 30Hz video rate
|
Category |
Specification | Details |
| Thermal Image | Detector | Amorphous Silicon Microbolometer |
| Core | 640 x 480 pixel array high-definition | |
| Pixel Pitch | 17 micron | |
| Video Rate | 30 Hz | |
| Display | OLED 852 x 600 pixels SVGA monochrome, 35° apparent image horizontal angle of view | |
| Controls | Menu | On/off, polarity white/black hot, contrast enhancement, electronic zoom 1x, 2x and 4x ratio, screen brightness |
| Input/Output | Single multi pin socket for: PAL video out for recording or transmission, External power via battery power module | |
| Physical Dimensions | Model 25mm | Length: 135mm, Height: 91mm, Width: 79mm, Weight: 460g |
| Model 35mm | Length: 135mm, Height: 91mm, Width: 79mm, Weight: 460g | |
| Model 50mm | Length: 173mm, Height: 91mm, Width: 79mm, Weight: 593g | |
| Model 75mm | Length: 188mm, Height: 91mm, Width: 89mm, Weight: 682g | |
| Optics | Lens Quality | High quality IR objective lenses, fully coated eyepiece optics |
| Dioptre Adjustment | -6 to +3 minimum | |
| Eyepiece Lens | 25mm glass aperture | |
| Eye Relief | 27mm | |
| Environmental | Power Source | 2 x AA lithium batteries (gives up to 4 hours continuous operation) |
| Ingress Protection | IP68 Nitrogen filled | |
| Temperature Operation | -20°C to +55°C | |
| Temperature Storage | -40°C to +65°C |
