$29,500.00 USD
Shipping calculated at checkout.

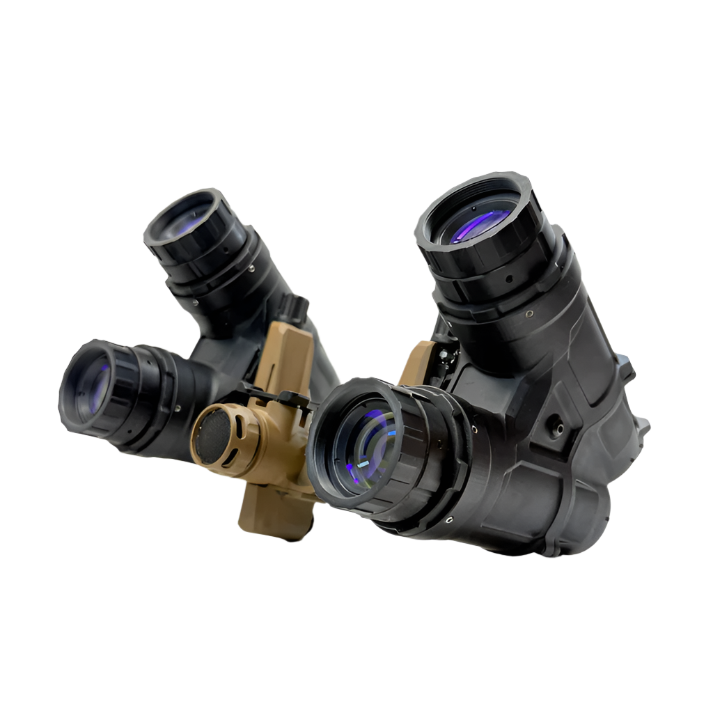

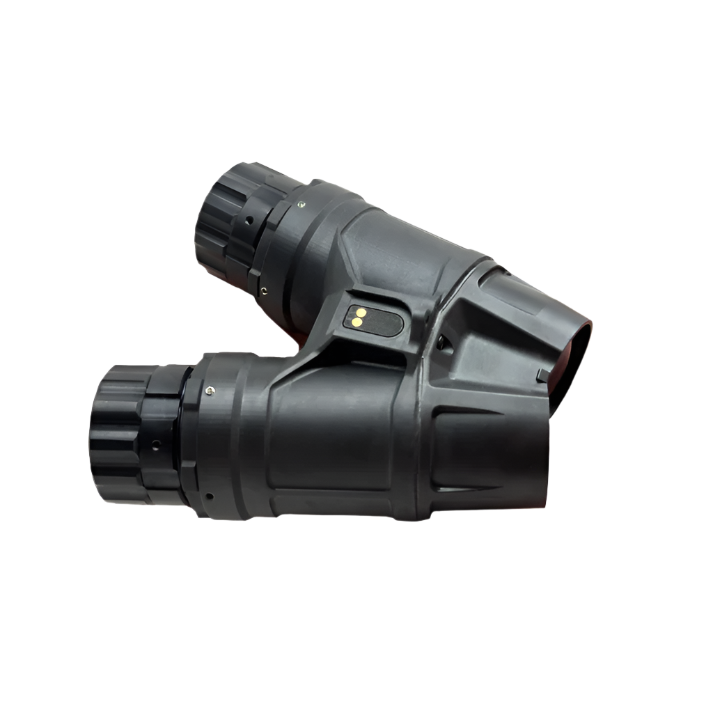

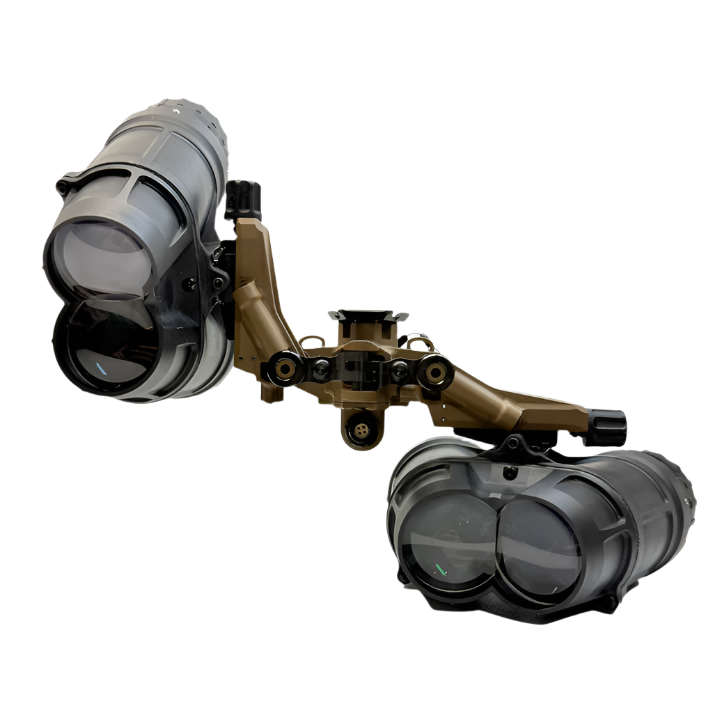

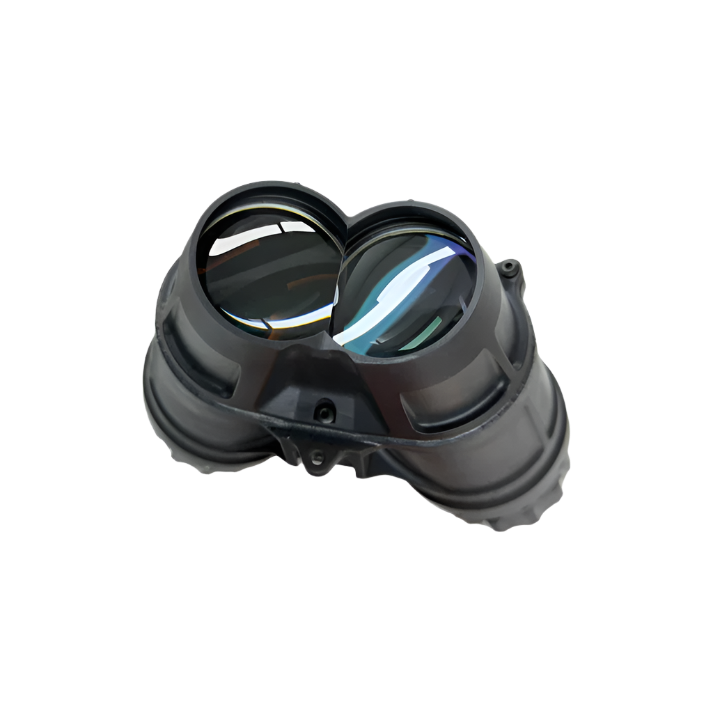

Chimera PANO | Night Vision Goggles
The Ultralight Articulating Panoramic Night Vision Goggle UAPNVG "Chimera" is the next evolution in panoramic NVG systems being the first articulating quad tube device.
| Specification | Details |
|---|---|
| Material | Impact Resistant Nylon 11 |
| Tube Type | 3 contact pad style 18mm MX-11769, 18mm MX-11769 style with EGAC pigtail removed and replaced with adapter, or MX-10160 with loss of manual gain |
| IR Illuminator | Dependent upon bridge |
| Manual Gain Control | Dependent on bridge |
| Housing Weight | 1.83 oz / 0.11 lbs / 52g |
| UAPNVG System Weight | STANDARD (27.1 oz / 1.69 lbs / 768.3g) |
| Ingress Rating | Exceeds IP-68, and MIL-STD-810H |
| Finish | H-Series Cerakote (Matte Black, Coyote, OD) |
| On-Board Power | Single CR123A onboard with a runtime of ~12 hours, up to ~48 hours with battery pack, Optional LEMO port* |
